Colona Horizontal 3 Column

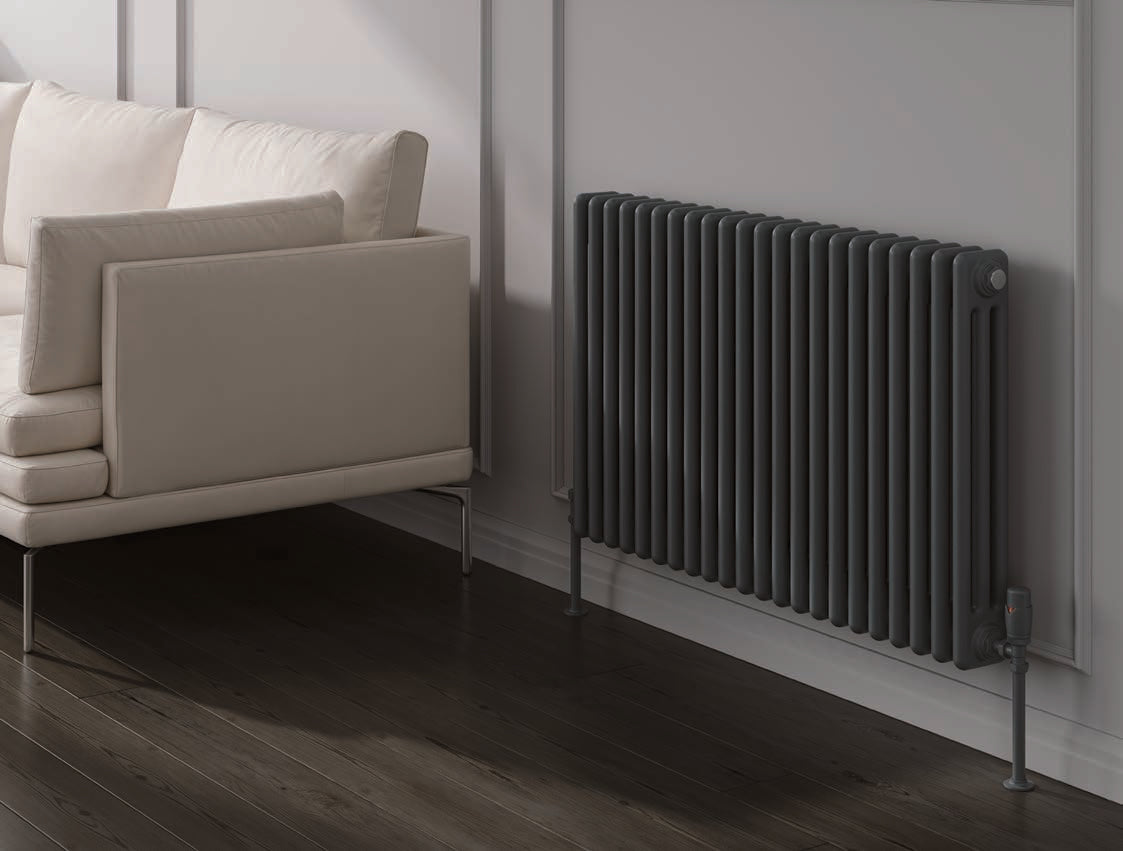

Reina Colona Horizontal 3 Column.

Material: Steel.

Heat outputs are quoted at ΔT50.

Supplier code	Size	Colour	Pipe centres (mm)	Wall to pipe centres (mm)	Wall distance (mm)	Output (W at ΔT50)
3/C513	500 x 605 mm	White	605	68	118	658.0
3/C513A	500 x 605 mm	Anthracite	605	68	118	658.0
3/C613	600 x 605 mm	White	605	68	118	777.0
3/C613A	600 x 605 mm	Anthracite	605	68	118	777.0
3/C517	500 x 785 mm	White	785	68	118	860.0
3/C517A	500 x 785 mm	Anthracite	785	68	118	860.0
3/C617	600 x 785 mm	White	785	68	118	1012.0
3/C617A	600 x 785 mm	Anthracite	785	68	118	1012.0
3/C322	300 x 1010 mm	White	1010	68	118	677.0
3/C522	500 x 1010 mm	White	1010	68	118	1113.0
3/C522A	500 x 1010 mm	Anthracite	1010	68	118	1113.0
3/C622	600 x 1010 mm	White	1010	68	118	1309.0
3/C622A	600 x 1010 mm	Anthracite	1010	68	118	1309.0
3/C326	300 x 1190 mm	White	1190	68	118	799.0
3/C526	500 x 1190 mm	White	1190	68	118	1316.0
3/C526A	500 x 1190 mm	Anthracite	1190	68	118	1316.0
3/C626	600 x 1190 mm	White	1190	68	118	1548.0
3/C626A	600 x 1190 mm	Anthracite	1190	68	118	1548.0
3/C330	300 x 1370 mm	White	1370	68	118	922.0
3/C530	500 x 1370 mm	White	1370	68	118	1518.0
3/C630	600 x 1370 mm	White	1370	68	118	1785.0
