Flat Vertical Double

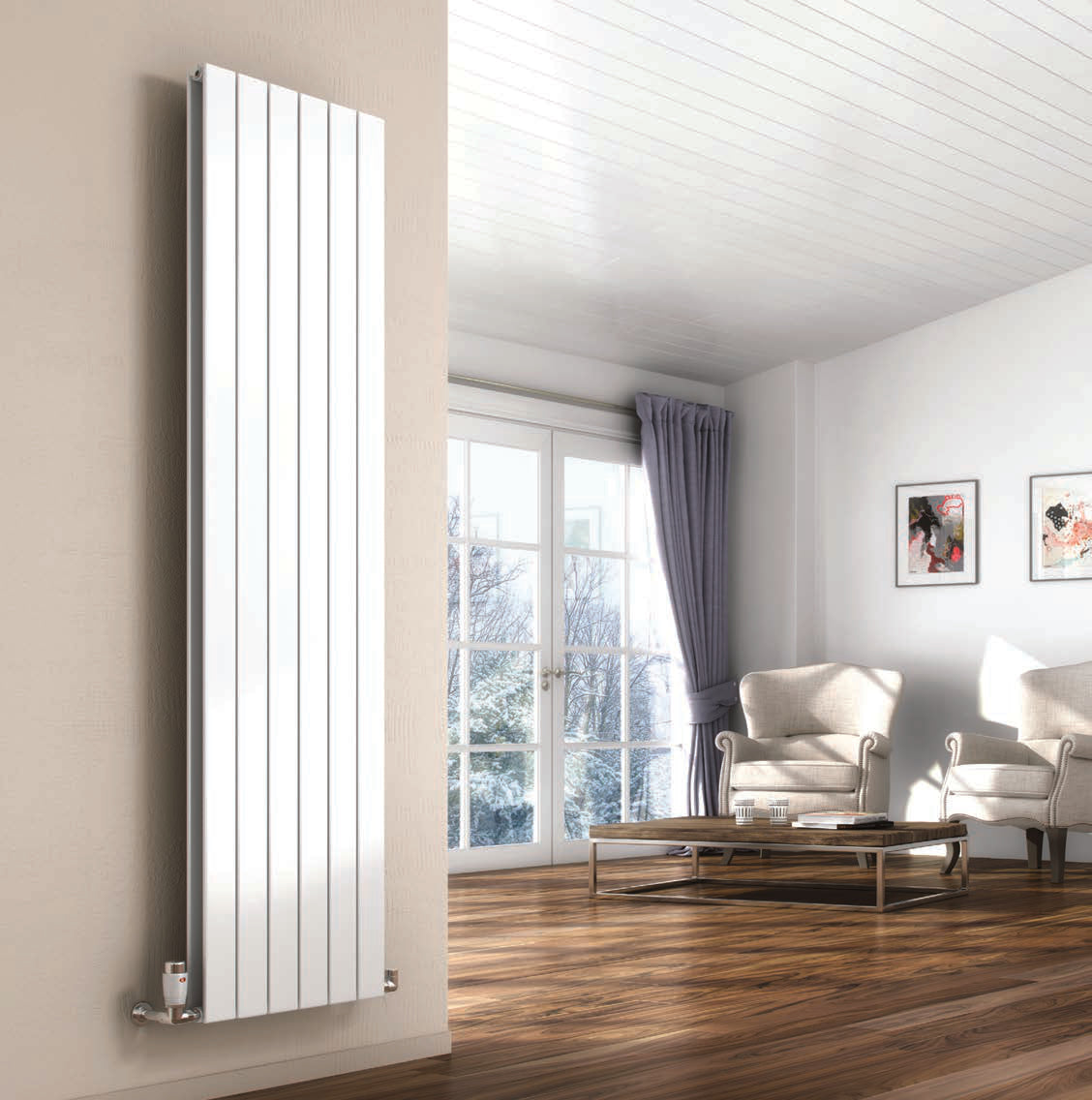

Reina Flat Vertical Double.

Material: Steel.

Heat outputs are quoted at ΔT50.

Supplier code	Size	Colour	Pipe centres (mm)	Wall to pipe centres (mm)	Wall distance (mm)	Output (W at ΔT50)
RND-FL186AD	1800 x 440 mm	Anthracite	440	64	93	1170.0
RND-FL186WD	1800 x 440 mm	White	440	64	93	1170.0
RND-FL163AD	1600 x 218 mm	Anthracite	218	64	93	504.0
RND-FL163WD	1600 x 218 mm	White	218	64	93	504.0
RND-FL183AD	1800 x 218 mm	Anthracite	218	64	93	581.0
RND-FL183WD	1800 x 218 mm	White	218	64	93	581.0
RND-FL164AD	1600 x 292 mm	Anthracite	292	64	93	672.0
RND-FL164WD	1600 x 292 mm	White	292	64	93	672.0
RND-FL184AD	1800 x 292 mm	Anthracite	292	64	93	774.0
RND-FL184WD	1800 x 292 mm	White	292	64	93	774.0
RND-FL165AD	1600 x 366 mm	Anthracite	366	64	93	847.0
RND-FL165WD	1600 x 366 mm	White	366	64	93	847.0
RND-FL185AD	1800 x 366 mm	Anthracite	366	64	93	975.0
RND-FL185WD	1800 x 366 mm	White	366	64	93	975.0
RND-FL166AD	1600 x 440 mm	Anthracite	440	64	93	1035.0
RND-FL166WD	1600 x 440 mm	White	440	64	93	1035.0
RND-FL167AD	1600 x 514 mm	Anthracite	514	64	93	1185.0
RND-FL167WD	1600 x 514 mm	White	514	64	93	1185.0
RND-FL187AD	1800 x 514 mm	Anthracite	514	64	93	1365.0
RND-FL187WD	1800 x 514 mm	White	514	64	93	1365.0
