Flat Vertical Single

Reina Flat Vertical Single.

Material: Steel.

Heat outputs are quoted at ΔT50.

Supplier code	Size	Colour	Pipe centres (mm)	Wall to pipe centres (mm)	Wall distance (mm)	Output (W at ΔT50)

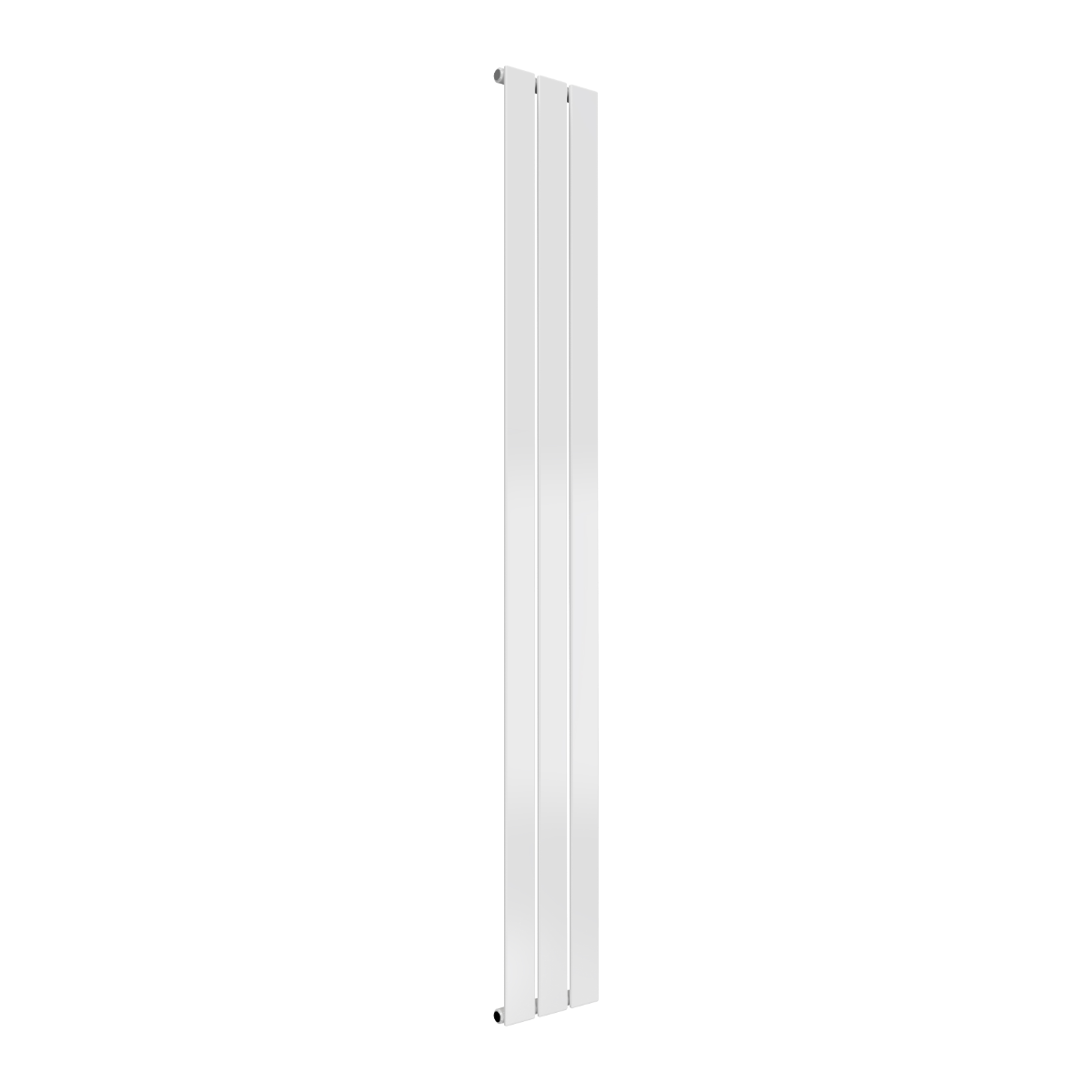

RND-FL163W	1600 x 218 mm	White	218	39	68	397.0

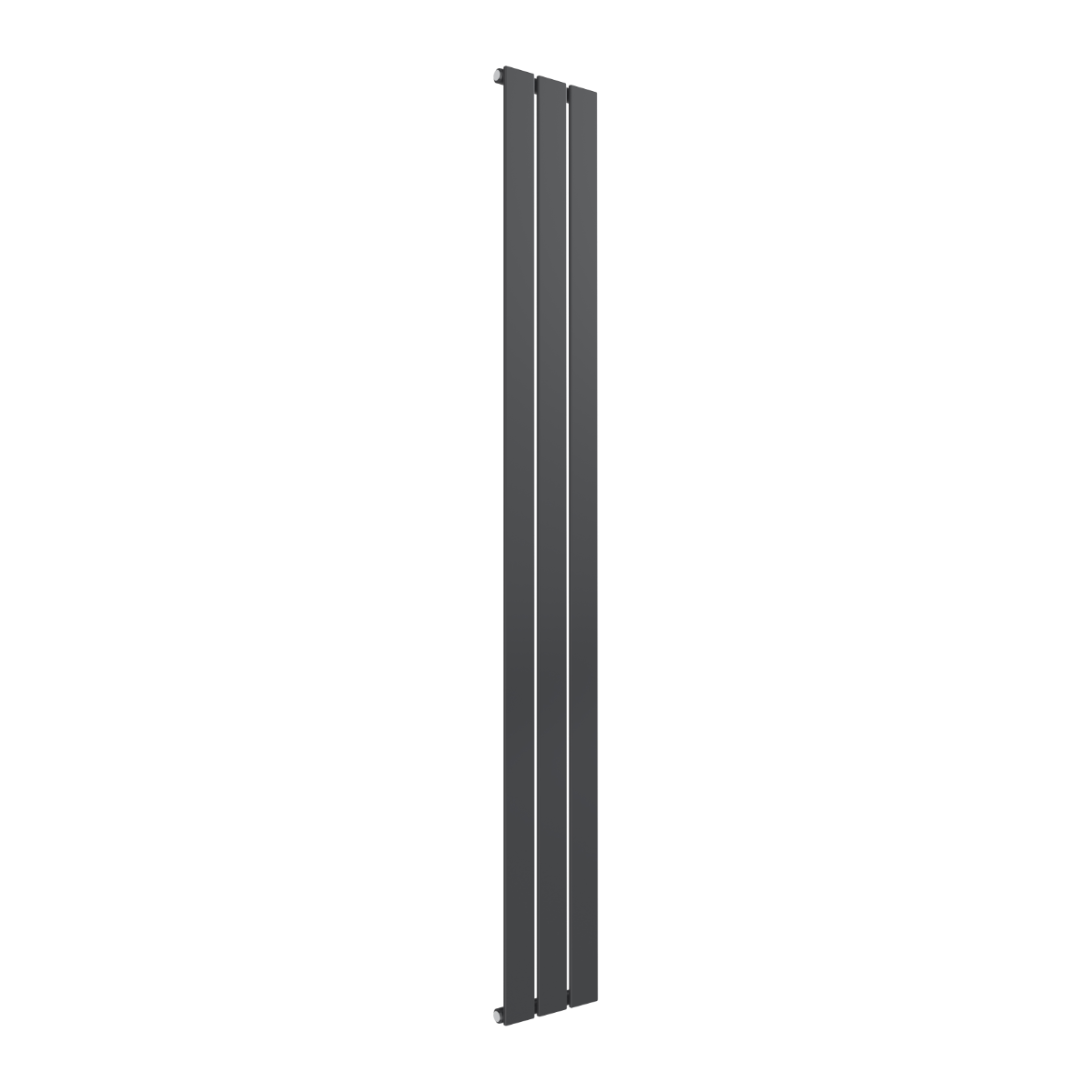

RND-FL163A	1600 x 218 mm	Anthracite	218	39	68	397.0
RND-FL183W	1800 x 218 mm	White	218	39	68	447.0
RND-FL183A	1800 x 218 mm	Anthracite	218	39	68	447.0
RND-FL164W	1600 x 292 mm	White	292	39	68	529.0
RND-FL164A	1600 x 292 mm	Anthracite	292	39	68	529.0
RND-FL184W	1800 x 292 mm	White	292	39	68	595.0
RND-FL184A	1800 x 292 mm	Anthracite	292	39	68	595.0
RND-FL165W	1600 x 366 mm	White	366	39	68	661.0
RND-FL165A	1600 x 366 mm	Anthracite	366	39	68	661.0
RND-FL185W	1800 x 366 mm	White	366	39	68	744.0
RND-FL185A	1800 x 366 mm	Anthracite	366	39	68	744.0
RND-FL166W	1600 x 440 mm	White	440	39	68	794.0
RND-FL166A	1600 x 440 mm	Anthracite	440	39	68	794.0
RND-FL186W	1800 x 440 mm	White	440	39	68	893.0
RND-FL186A	1800 x 440 mm	Anthracite	440	39	68	893.0
RND-FL167W	1600 x 514 mm	White	514	39	68	926.0
RND-FL167A	1600 x 514 mm	Anthracite	514	39	68	926.0
RND-FL187W	1800 x 514 mm	White	514	39	68	1042.0
RND-FL187A	1800 x 514 mm	Anthracite	514	39	68	1042.0
