Slimline Vertical

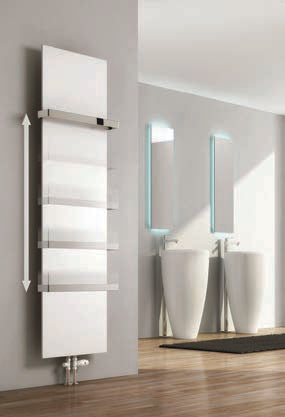

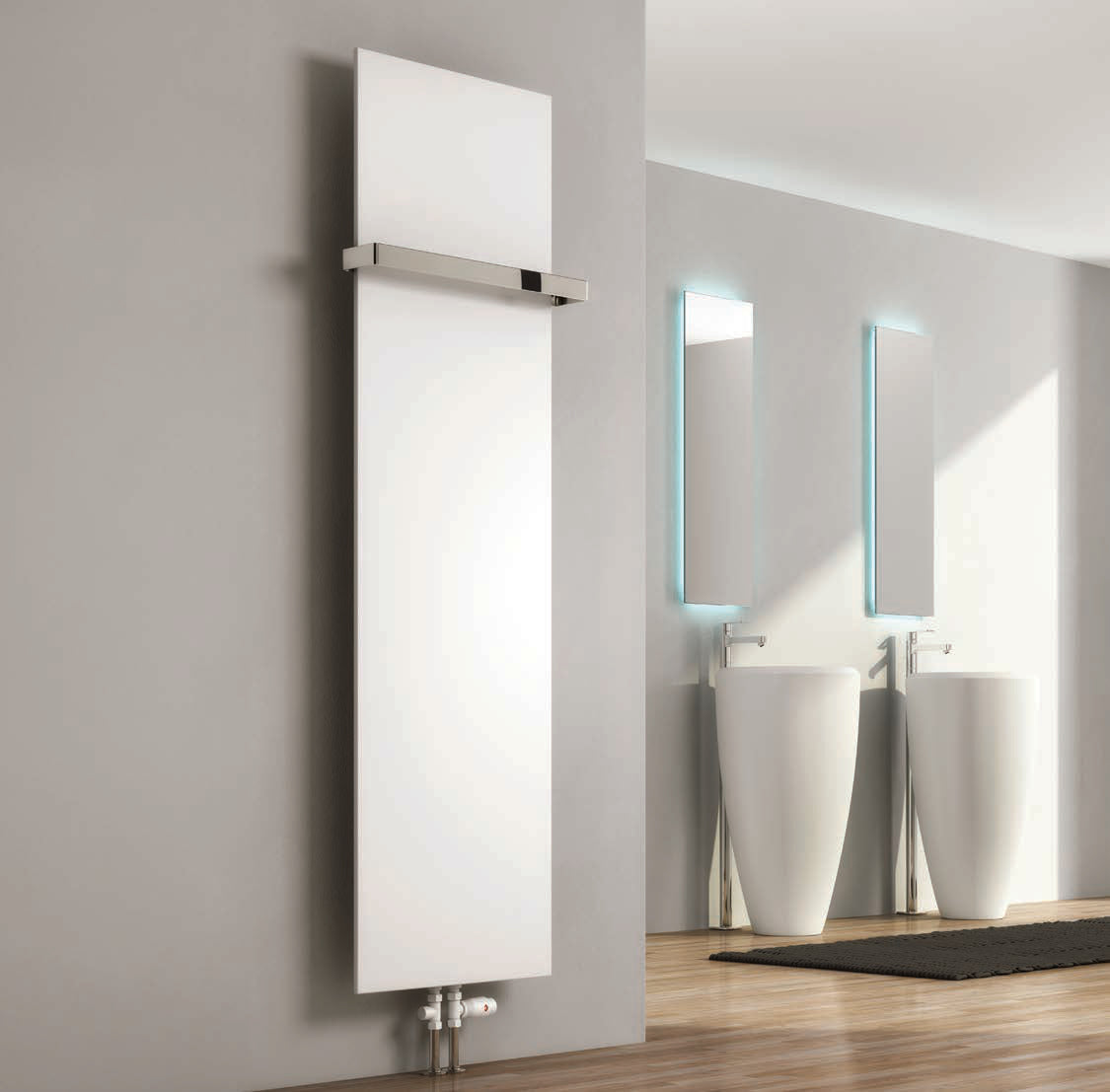

Reina Slimline Vertical.

Material: Steel.

Heat outputs are quoted at ΔT50.

Supplier code	Size	Colour	Pipe centres (mm)	Wall to pipe centres (mm)	Wall distance (mm)	Output (W at ΔT50)
RND-SLN04703W	470 x 300 mm	White	50	30-55	62-87	184.0
RND-SLN04703A	470 x 300 mm	Anthracite	50	30-55	62-87	184.0
RND-SLN07703W	770 x 300 mm	White	50	30-55	62-87	302.0
RND-SLN07703A	770 x 300 mm	Anthracite	50	30-55	62-87	302.0
RND-SLN11703W	1170 x 300 mm	White	50	30-55	62-87	458.0
RND-SLN11703A	1170 x 300 mm	Anthracite	50	30-55	62-87	458.0
RND-SLN11704W	1170 x 400 mm	White	50	30-55	62-87	611.0
RND-SLN11704A	1170 x 400 mm	Anthracite	50	30-55	62-87	611.0
RND-SLN11705W	1170 x 500 mm	White	50	30-55	62-87	764.0
RND-SLN11705A	1170 x 500 mm	Anthracite	50	30-55	62-87	764.0
RND-SLN14703W	1470 x 300 mm	White	50	30-55	62-87	576.0
RND-SLN14703A	1470 x 300 mm	Anthracite	50	30-55	62-87	576.0
RND-SLN14704W	1470 x 400 mm	White	50	30-55	62-87	768.0
RND-SLN14704A	1470 x 400 mm	Anthracite	50	30-55	62-87	768.0
RND-SLN14705W	1470 x 500 mm	White	50	30-55	62-87	960.0
RND-SLN14705A	1470 x 500 mm	Anthracite	50	30-55	62-87	960.0
RND-SLN17703W	1770 x 300 mm	White	50	30-55	62-87	694.0
RND-SLN17703A	1770 x 300 mm	Anthracite	50	30-55	62-87	694.0
RND-SLN17704W	1770 x 400 mm	White	50	30-55	62-87	924.0
RND-SLN17704A	1770 x 400 mm	Anthracite	50	30-55	62-87	924.0
RND-SLN17705W	1770 x 500 mm	White	50	30-55	62-87	1156.0
RND-SLN17705A	1770 x 500 mm	Anthracite	50	30-55	62-87	1156.0
